POSITION: Home > Products > Strapping

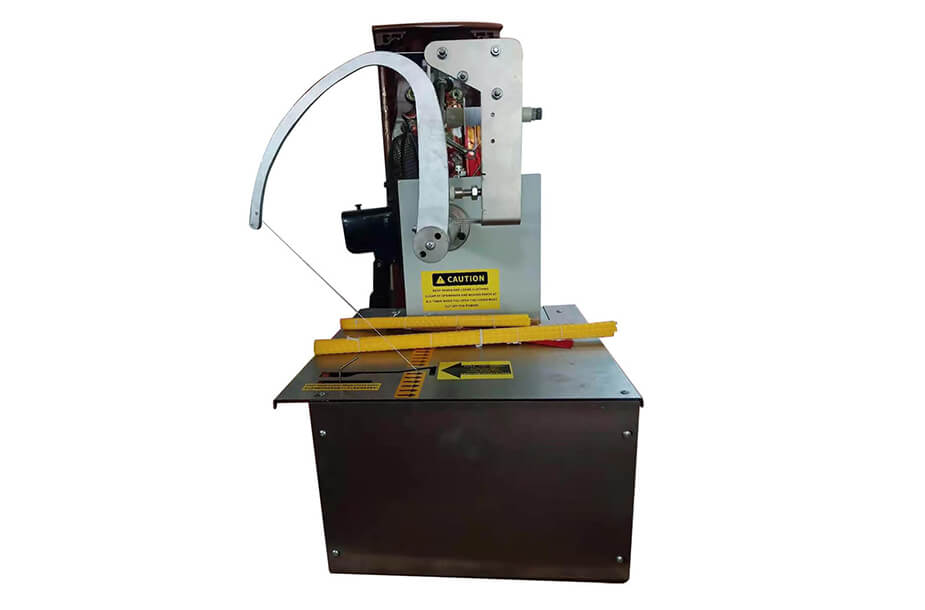

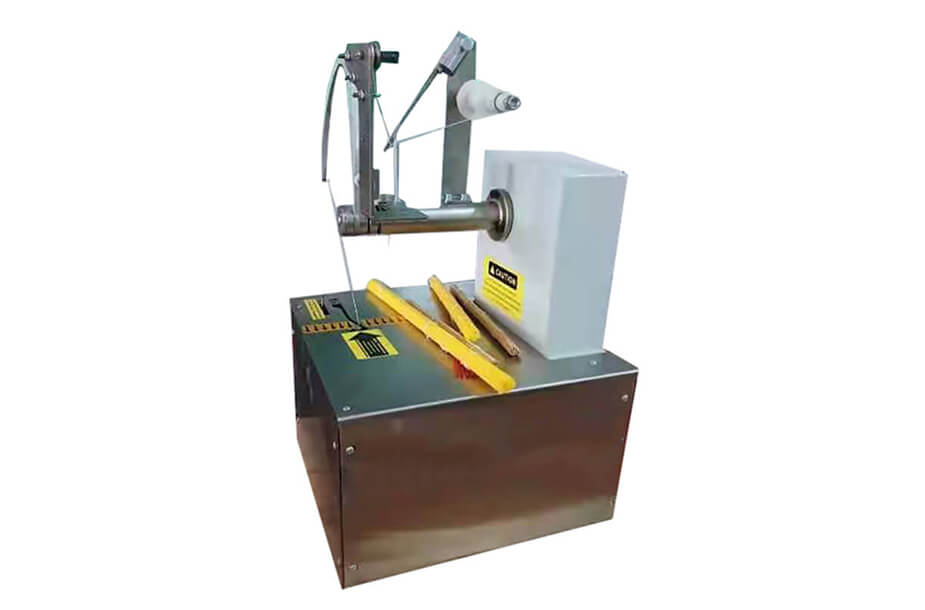

CB-100 Stretch Rope Strapping Machine
Share us:
CB-100 Stretch Rope Strapping Machine
CB-100 Stretch Rope Strapping Machine
CB-100 Stretch Rope Strapping Machine
/d/images/products/Strapping/KZ-1%20(1).jpg
/d/images/products/Strapping/KZ-1%20(2).jpg
/d/images/products/Strapping/KZ-1%20(3).jpg
Products List
Cutting
CT-100S Automatic Cutting Machine
CT-30 automatic corrugated tube cutting machine
CT-630 automatic cutting machine
Stripping
WS-300 Rotating Blade Wire Stripping Machine
WS-2018 Electric Wire Stripping Machine
WS-2016 Pneumatic Wire Stripping Machine
Cutting & Stripping
CS-8120H Multi-core Cable Cutting and Stripping Machine
CS-8120 Automatic Cutting and Stripping Machine
CS-880H Automatic Cutting and Stripping Machine
CS-880 Automatic Cutting and Stripping Machine
CS-30H Sheathed Cable Automatic Cutting and Stripping Machine
CS-830 Automatic Cutting and Stripping Machine
CS-870 Wire Cutting And Stripping Machine
CS-860 Wire Cutting And Stripping Machine
CS-840 Wire Cutting And Stripping Machine
CS-810 Wire Cutting and Stripping Machine
Cutting Stripping & Bending
ZW-35 Wire Cutting Stripping And Bending Machine
ZW-16 Wire Cutting Stripping And Bending Machine
ZW-6 Wire Cutting Stripping And Bending Machine
Crimping
TP-60C Copper belt crimping machine
TP-10P RJ Connectors Crimping Machine
TP-64F IDC Flat Cable Connector Crimping Machine
TP-120 Terminal Crimping Machine
TP-116 Terminal Crimping Machine
TP-40 Terminal Crimping Machine
TP-20 Terminal Crimping Machine
TP-20S Terminal crimping machine
TPA-P5 Pneumatic Terminal Crimping Applicator
TPA-M5 Mechanical Terminal Crimping Applicator
Stripping & Crimping
TP-30A Stripping and crimping machine
TP-20B Wire Stripping And Crimping Machine
TP-40T Stripping And Pre-insulation FerruleTerminal Crimping Machine
TP-40F Pre-insulation Ferrule Terminal Strip And Crimp Machine
Taping & Bundling
HT-B Hand-held Wire Winding Taping Machine
HT-E Tape Wrapping Machine
Prefeeding
FM-280 Automatic Wire Prefeeder
FM-260 Wire pre-feeding machine
FM-10 Automatic Wire Prefeeder
FM-02 Wire Pre-feeding Machine
FM-20 Wire Feeding Machine
Quality Tools
PT-50A Pull Force Measuring Machine
PT-50C Pull Force Tester For Wire Terminals
PT-100A Pull Force Tester For Wire Terminals
Hand Tools
L-1807 Non-insulated Terminals Crimping Pliers
L-1004 Non-insulated Terminals Crimping Pliers
L-1002 Non-insulated Terminals Crimping Pliers
L-1606 Non-insulated Terminals Crimping Pliers
YJY-2214 Tube and Pre-insulated Terminals Crimping Pliers
GXT-2410 Insulated and Non-insulated Ferrules Crimping Pliers
GX4-2810 Self-adjusting Crimping Pliers
GXT-1206 Insulated and Non-insulated Ferrules Crimping Pliers
GX6-2410 Self-adjusting Crimping Pliers
GX4-2408 Self-adjusting Crimping Pliers
Electronics Cutting & Forming
CF-106 Diode Cutting And Forming Machine
CF-108 Automatic Transistor Forming Machine
Strapping
CB-100 Stretch Rope Strapping Machine
Splitting & Twisting
ST-40 Wire Splitting And Twisting Machine
Spare Parts
SP-SCH02 Wire Cutting And Stripping Blades
SP-XMH01 Wire Cutting And Stripping Blades
SP-SCH01 Wire Cutting And Stripping Blades
SP-KOX01 Wire Cutting And Stripping Blades
SP-TZ02 Coaxial Wire Stripping Blade
SP-TZ01 Coaxial Wire Stripping Blade
Terminals
T-E-OT Non-Insulated Ring Terminal
T-E-RNB Non-Insulated Ring Terminal
T-VE0516 Nylon-Insulated Twin Cord End Terminal
T-E10410 Copper Insulated Wire End Ferrules
T-E2412 Copper Insulated Wire End Ferrules
Working principle of CB-100 Stretch Rope Strapping Machine
Parameter
Working principle of CB-100 Stretch Rope Strapping Machine
Turn on the power supply, the product moves along the table and touches the contact switch, and the threading arm starts to move. The elastic thread is clamped as the threading arm descends. The knotting mechanism starts to tie the knot, and then the threading arm returns to the initial position. The strapping is complete.

Parameter
Model CB-100
Usage Strapping
Capacity 100 times/min
Power supply 200-240 V, 50/ 60 Hz, 1 ph.; 100-120 V, 50/ 60 Hz, 1 ph.
Feed through H150mm,W250mm
Bench Stainless steel
Push-in From left to right
String tension Adjustable
Elastic string Cylastic PES; Cylastic PC s1300; Cylastic 3K
Weight 47KG
