POSITION: Home > Products > Crimping

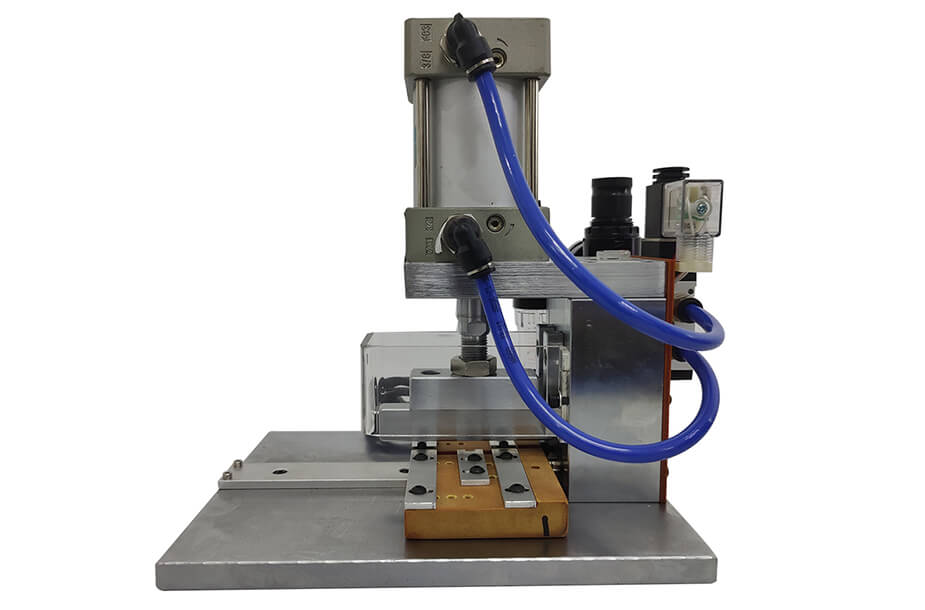

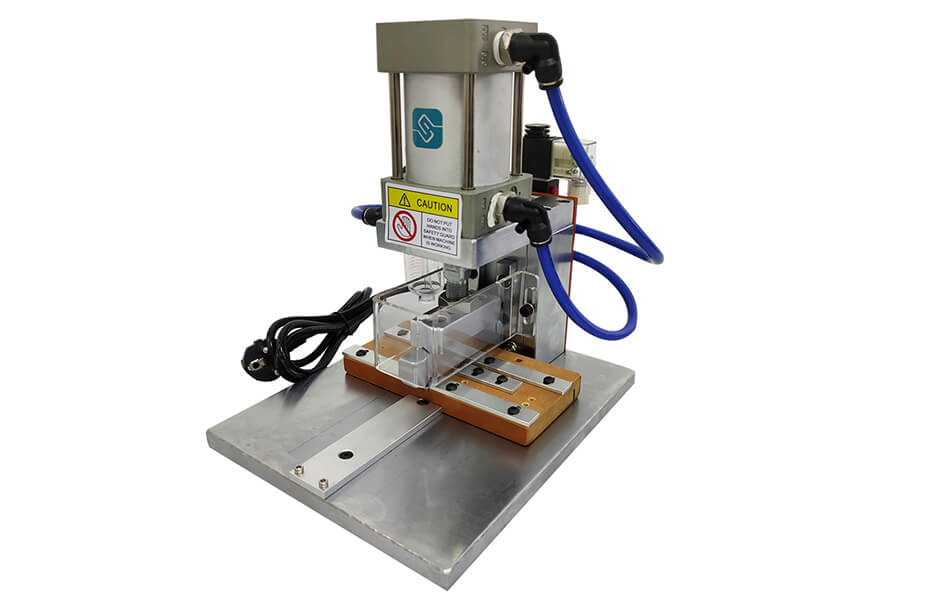

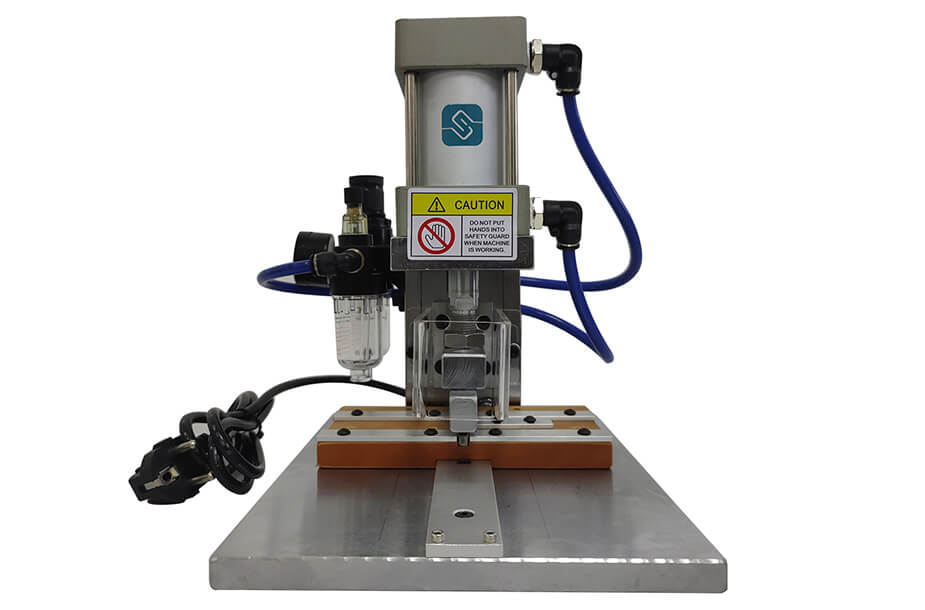

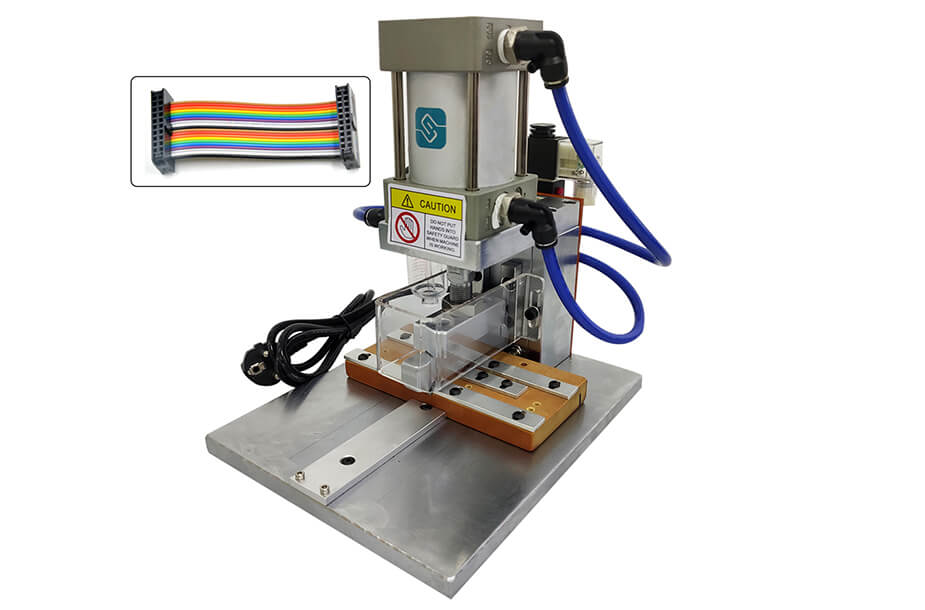

TP-64F IDC Flat Cable Connector Crimping Machine
TP-64F IDC Flat Cable Connector Crimping Machine can used for 8P-50P IDC cable crimping and crimping machine instead of hand-pressing pliers.
Share us:
IDC Flat Cable Connector Crimping Machine
IDC Flat Cable Connector Crimping Machine
IDC Flat Cable Connector Crimping Machine
IDC Flat Cable Connector Crimping Machine
/d/images/products/Crimping/PX-0464P/PX-0464P%20(2).jpg
/d/images/products/Crimping/PX-0464P/PX-0464P%20(1).jpg
/d/images/products/Crimping/PX-0464P/PX-0464P%20(3).jpg
/d/images/products/Crimping/PX-0464P/PX-0464P%20(9).jpg
Products List
Cutting
CT-100S Automatic Cutting Machine
CT-30 automatic corrugated tube cutting machine
CT-630 automatic cutting machine
Stripping
WS-300 Rotating Blade Wire Stripping Machine
WS-2018 Electric Wire Stripping Machine
WS-2016 Pneumatic Wire Stripping Machine
Cutting & Stripping
CS-8120H Multi-core Cable Cutting and Stripping Machine
CS-8120 Automatic Cutting and Stripping Machine
CS-880H Automatic Cutting and Stripping Machine
CS-880 Automatic Cutting and Stripping Machine
CS-30H Sheathed Cable Automatic Cutting and Stripping Machine
CS-830 Automatic Cutting and Stripping Machine
CS-870 Wire Cutting And Stripping Machine
CS-860 Wire Cutting And Stripping Machine
CS-840 Wire Cutting And Stripping Machine
CS-810 Wire Cutting and Stripping Machine
Cutting Stripping & Bending
ZW-35 Wire Cutting Stripping And Bending Machine
ZW-16 Wire Cutting Stripping And Bending Machine
ZW-6 Wire Cutting Stripping And Bending Machine
Crimping
TP-60C Copper belt crimping machine
TP-10P RJ Connectors Crimping Machine
TP-64F IDC Flat Cable Connector Crimping Machine
TP-120 Terminal Crimping Machine
TP-116 Terminal Crimping Machine
TP-40 Terminal Crimping Machine
TP-20 Terminal Crimping Machine
TP-20S Terminal crimping machine
TPA-P5 Pneumatic Terminal Crimping Applicator
TPA-M5 Mechanical Terminal Crimping Applicator
Stripping & Crimping
TP-30A Stripping and crimping machine
TP-20B Wire Stripping And Crimping Machine
TP-40T Stripping And Pre-insulation FerruleTerminal Crimping Machine
TP-40F Pre-insulation Ferrule Terminal Strip And Crimp Machine
Taping & Bundling
HT-B Hand-held Wire Winding Taping Machine
HT-E Tape Wrapping Machine
Prefeeding
FM-280 Automatic Wire Prefeeder
FM-260 Wire pre-feeding machine
FM-10 Automatic Wire Prefeeder
FM-02 Wire Pre-feeding Machine
FM-20 Wire Feeding Machine
Quality Tools
PT-50A Pull Force Measuring Machine
PT-50C Pull Force Tester For Wire Terminals
PT-100A Pull Force Tester For Wire Terminals
Hand Tools
L-1807 Non-insulated Terminals Crimping Pliers
L-1004 Non-insulated Terminals Crimping Pliers
L-1002 Non-insulated Terminals Crimping Pliers
L-1606 Non-insulated Terminals Crimping Pliers
YJY-2214 Tube and Pre-insulated Terminals Crimping Pliers
GXT-2410 Insulated and Non-insulated Ferrules Crimping Pliers
GX4-2810 Self-adjusting Crimping Pliers
GXT-1206 Insulated and Non-insulated Ferrules Crimping Pliers
GX6-2410 Self-adjusting Crimping Pliers
GX4-2408 Self-adjusting Crimping Pliers
Electronics Cutting & Forming
CF-106 Diode Cutting And Forming Machine
CF-108 Automatic Transistor Forming Machine
Strapping
CB-100 Stretch Rope Strapping Machine
Splitting & Twisting
ST-40 Wire Splitting And Twisting Machine
Spare Parts
SP-SCH02 Wire Cutting And Stripping Blades
SP-XMH01 Wire Cutting And Stripping Blades
SP-SCH01 Wire Cutting And Stripping Blades
SP-KOX01 Wire Cutting And Stripping Blades
SP-TZ02 Coaxial Wire Stripping Blade
SP-TZ01 Coaxial Wire Stripping Blade
Terminals
T-E-OT Non-Insulated Ring Terminal
T-E-RNB Non-Insulated Ring Terminal
T-VE0516 Nylon-Insulated Twin Cord End Terminal
T-E10410 Copper Insulated Wire End Ferrules
T-E2412 Copper Insulated Wire End Ferrules
Features
Parameter
Application
Features
1. For 8P-50P IDC cable crimping and crimping machine instead of hand-pressing pliers, the crimping efficiency is high, the quality is stable, and the operation is simple.
2. Minimum gas consumption, low failure rate and easy maintenance.
3. With the use of bakelite base, the operation is simple, wear-resistant and high precision.
4. Suitable for IDC product crimping cable.

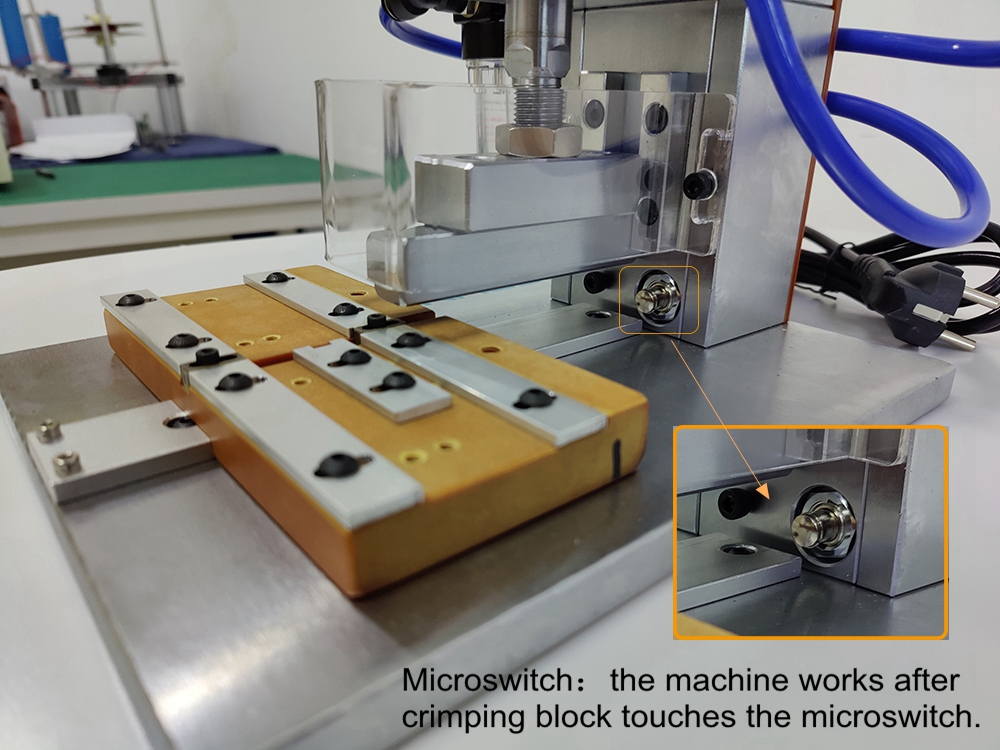

5. After the product is pushed in, it will be automatically punched, and the cylinder will be reset after completion. The operation is simple and easy to learn.
6. It can be pressed 300 ~ 600 times per hour according to the product type.
7. Use 6 ~ 8kg air pressure, 220V power supply.
8. The body is made of steel, which is stable and durable.

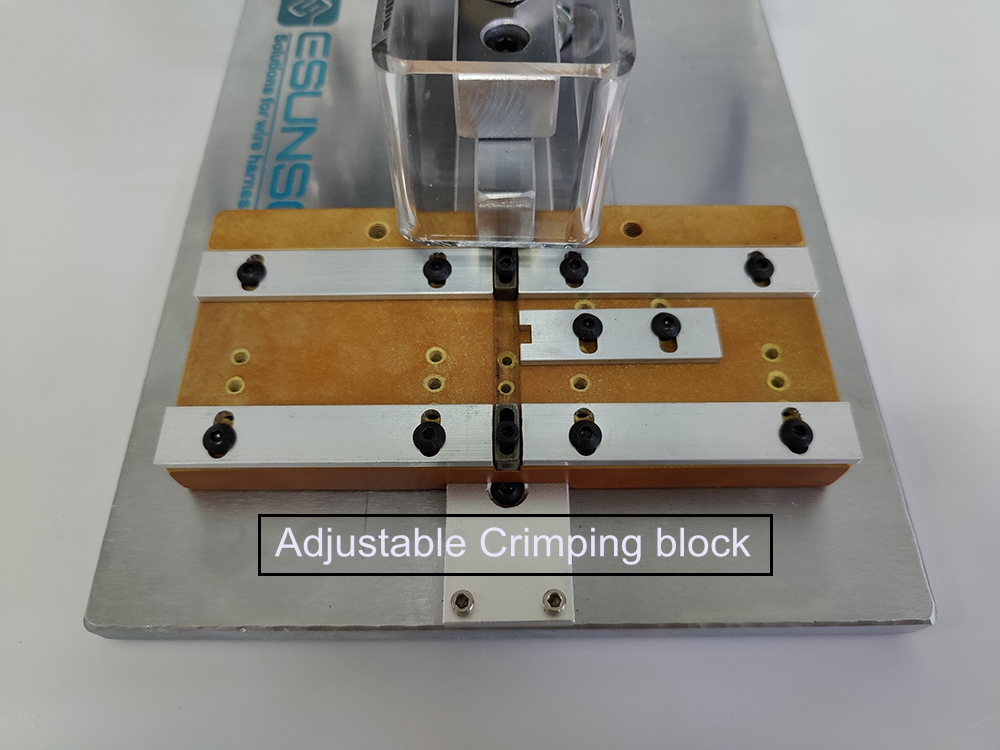

9. Distribution of a set of bakelite crimping adjustable blocks 8 ~ 40P (designed and manufactured according to customer products)

Parameter
Model TP-64F
Crimping range one crimping fixture for 4-30P;
one crimping fixture for 30-50p;
one crimping fixture for 64p;
Capacity 300-600pcs/H
Air pressure 6-8kg
Voltage AC220V 50/60HZ
Dimensions 250*200*330mm
Weight 14kg
Application

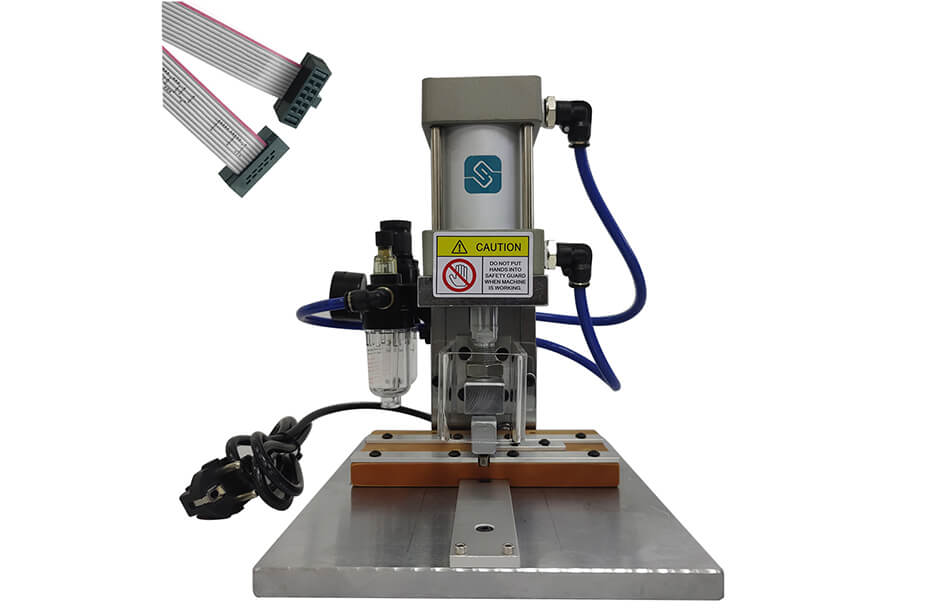

Flat cable crimping machine
Flat cable crimping machine
IDC Coonector Crimping Machine
IDC Coonector Crimping Machine
IDC Coonector Crimping Machine
IDC Coonector Crimping Machine


Product Details






Inquiry
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
* Name:
* Email:
Tel:
Country:
* Content:
Recommended Products

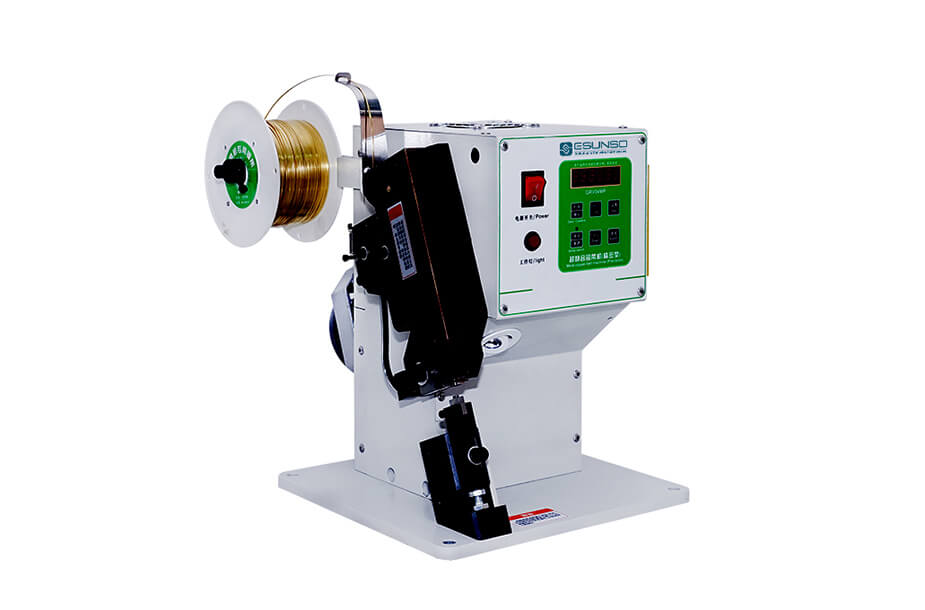

TP-60C Copper belt crimping machine
TP-60C Copper belt crimping machine
MORE

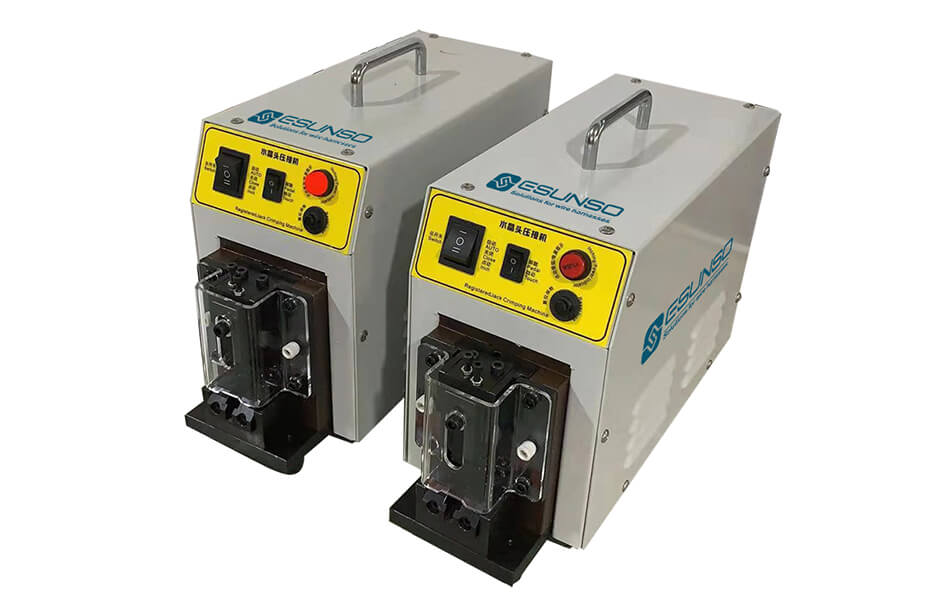

RJ45 RJ11 Connectors Crimping Machine
TP-10P RJ Connectors Crimping Machine
MORE

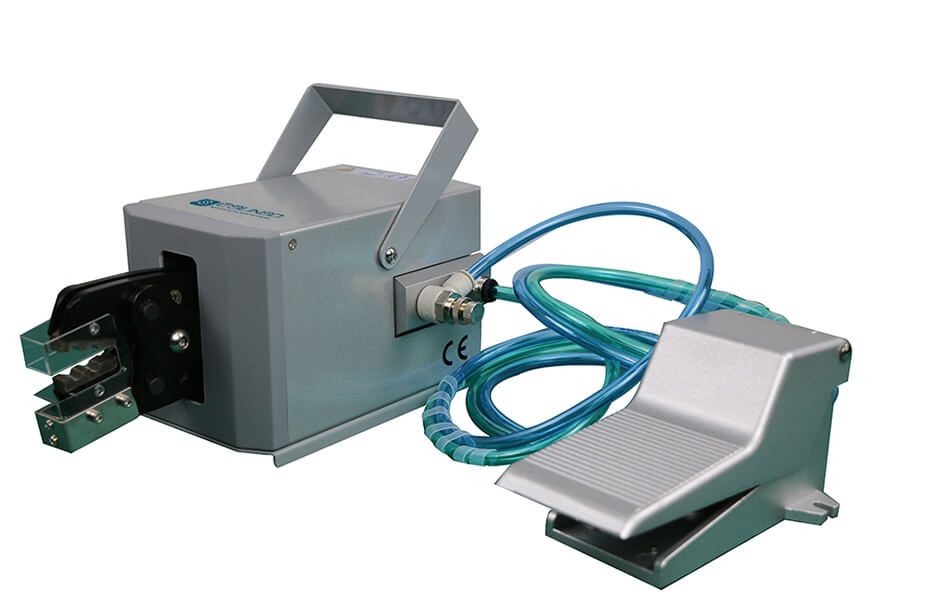

Pneumatic Loose Terminal Crimping Tool
