POSITION: Home > Products > Stripping & Crimping

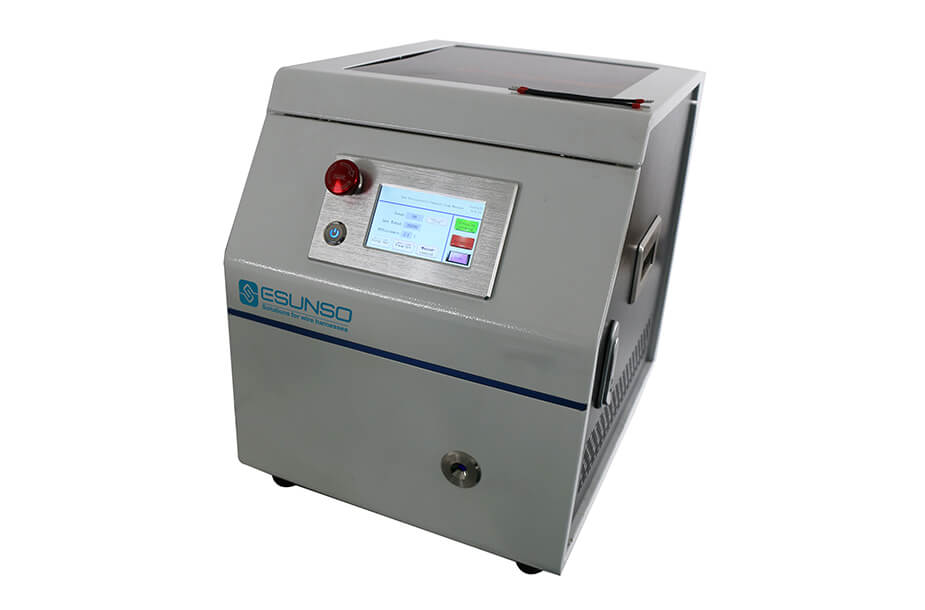

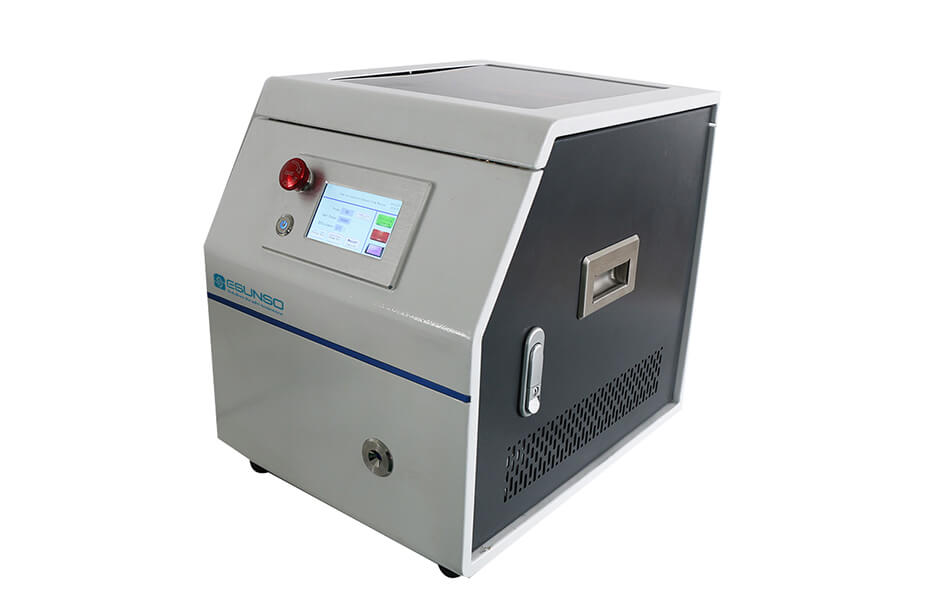

TP-40T Stripping And Pre-insulation FerruleTerminal Crimping Machine
TP-40T sets stripping wires, piercing terminals and crimping terminals as one of the automation equipment. It is suitable for processing 0.25-4mm² tube-type pre-insulated terminals.
Share us:
Stripping And Pre-insulation FerruleTerminal Crimping Machine
Stripping And Pre-insulation FerruleTerminal Crimping Machine
Stripping And Pre-insulation FerruleTerminal Crimping Machine
Stripping And Pre-insulation FerruleTerminal Crimping Machine
/d/images/products/Stripping%20and%20Crimping/FCM-40A/FCM-40A%20(5).jpg
/d/images/products/Stripping%20and%20Crimping/FCM-40A/FCM-40A%20(6).jpg
/d/images/products/Stripping%20and%20Crimping/FCM-40A/FCM-40A%20(7).jpg
/d/images/products/Stripping%20and%20Crimping/FCM-40A/FCM-40A%20(3).jpg
Products List
Cutting
CT-100S Automatic Cutting Machine
CT-30 automatic corrugated tube cutting machine
CT-630 automatic cutting machine
Stripping
WS-300 Rotating Blade Wire Stripping Machine
WS-2018 Electric Wire Stripping Machine
WS-2016 Pneumatic Wire Stripping Machine
Cutting & Stripping
CS-8120H Multi-core Cable Cutting and Stripping Machine
CS-8120 Automatic Cutting and Stripping Machine
CS-880H Automatic Cutting and Stripping Machine
CS-880 Automatic Cutting and Stripping Machine
CS-30H Sheathed Cable Automatic Cutting and Stripping Machine
CS-830 Automatic Cutting and Stripping Machine
CS-870 Wire Cutting And Stripping Machine
CS-860 Wire Cutting And Stripping Machine
CS-840 Wire Cutting And Stripping Machine
CS-810 Wire Cutting and Stripping Machine
Cutting Stripping & Bending
ZW-35 Wire Cutting Stripping And Bending Machine
ZW-16 Wire Cutting Stripping And Bending Machine
ZW-6 Wire Cutting Stripping And Bending Machine
Crimping
TP-60C Copper belt crimping machine
TP-10P RJ Connectors Crimping Machine
TP-64F IDC Flat Cable Connector Crimping Machine
TP-120 Terminal Crimping Machine
TP-116 Terminal Crimping Machine
TP-40 Terminal Crimping Machine
TP-20 Terminal Crimping Machine
TP-20S Terminal crimping machine
TPA-P5 Pneumatic Terminal Crimping Applicator
TPA-M5 Mechanical Terminal Crimping Applicator
Stripping & Crimping
TP-30A Stripping and crimping machine
TP-20B Wire Stripping And Crimping Machine
TP-40T Stripping And Pre-insulation FerruleTerminal Crimping Machine
TP-40F Pre-insulation Ferrule Terminal Strip And Crimp Machine
Taping & Bundling
HT-B Hand-held Wire Winding Taping Machine
HT-E Tape Wrapping Machine
Prefeeding
FM-280 Automatic Wire Prefeeder
FM-260 Wire pre-feeding machine
FM-10 Automatic Wire Prefeeder
FM-02 Wire Pre-feeding Machine
FM-20 Wire Feeding Machine
Quality Tools
PT-50A Pull Force Measuring Machine
PT-50C Pull Force Tester For Wire Terminals
PT-100A Pull Force Tester For Wire Terminals
Hand Tools
L-1807 Non-insulated Terminals Crimping Pliers
L-1004 Non-insulated Terminals Crimping Pliers
L-1002 Non-insulated Terminals Crimping Pliers
L-1606 Non-insulated Terminals Crimping Pliers
YJY-2214 Tube and Pre-insulated Terminals Crimping Pliers
GXT-2410 Insulated and Non-insulated Ferrules Crimping Pliers
GX4-2810 Self-adjusting Crimping Pliers
GXT-1206 Insulated and Non-insulated Ferrules Crimping Pliers
GX6-2410 Self-adjusting Crimping Pliers
GX4-2408 Self-adjusting Crimping Pliers
Electronics Cutting & Forming
CF-106 Diode Cutting And Forming Machine
CF-108 Automatic Transistor Forming Machine
Strapping
CB-100 Stretch Rope Strapping Machine
Splitting & Twisting
ST-40 Wire Splitting And Twisting Machine
Spare Parts
SP-SCH02 Wire Cutting And Stripping Blades
SP-XMH01 Wire Cutting And Stripping Blades
SP-SCH01 Wire Cutting And Stripping Blades
SP-KOX01 Wire Cutting And Stripping Blades
SP-TZ02 Coaxial Wire Stripping Blade
SP-TZ01 Coaxial Wire Stripping Blade
Terminals
T-E-OT Non-Insulated Ring Terminal
T-E-RNB Non-Insulated Ring Terminal
T-VE0516 Nylon-Insulated Twin Cord End Terminal
T-E10410 Copper Insulated Wire End Ferrules
T-E2412 Copper Insulated Wire End Ferrules
Features
Parameters
Application
Features
TP-40T sets stripping wires, piercing terminals and crimping terminals as one of the automation equipment.

1. Complete closed design, safe and reliable operation;
2. Touch screen operation, electric adjusting stripping depth and length;

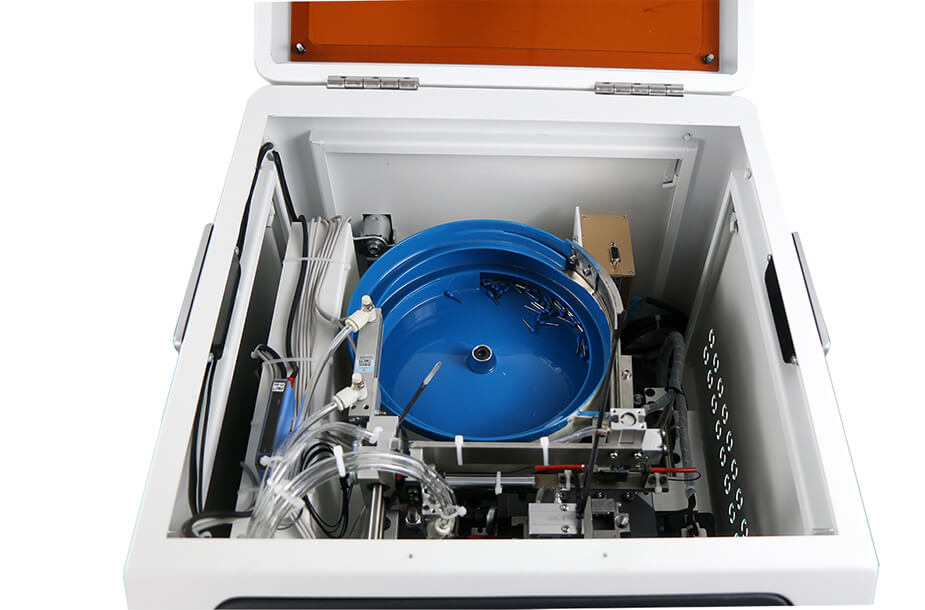

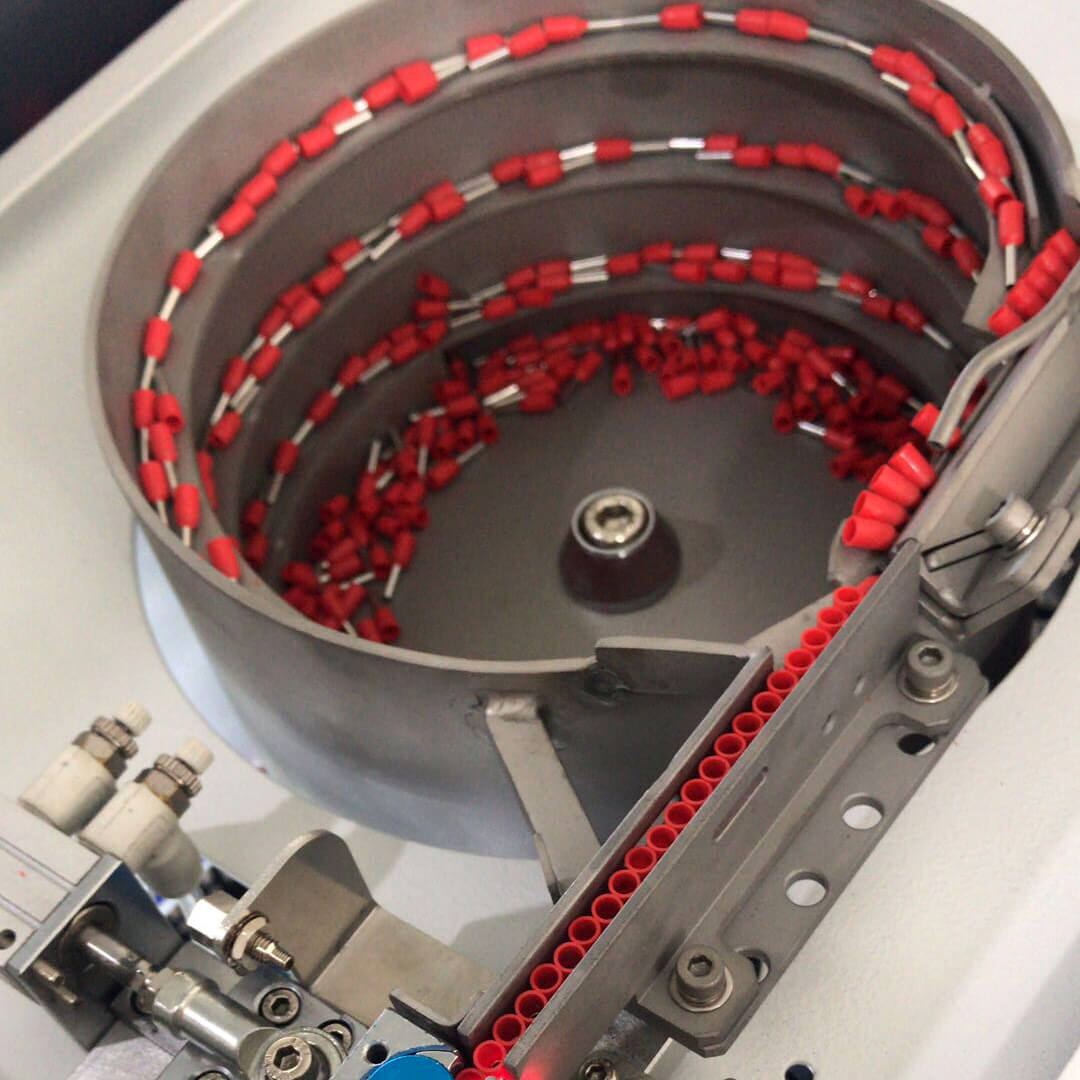

3. Automatic supply terminal, terminal four-side crimping, no need to change crimping die;
4. Agile automatic trigger, fast and convenient;
5. Semi-automatic operation;
6. Stripping, piercing terminals, crimping terminals are completed in 2.5 seconds;
7. Applied for tubular terminal from 0.3mm² to 4mm²;
8. Combined with the wire stripping machine can greatly improve efficiency;

Parameters
Productivity 2.5s/ one end / one terminal
Crimping shape quadrilateral / hexagon
Applied Specification 0.3mm²-4.0mm² (terminal conduit length less than 12mm)
Power supply AC220V/50HZ (single phase)
Air pressure 0.6-0.8Mpa (Please use clean and dry air source)
Weight 68kg
Dimensions(LxWxH) 430mmx505mmx425mm
Application

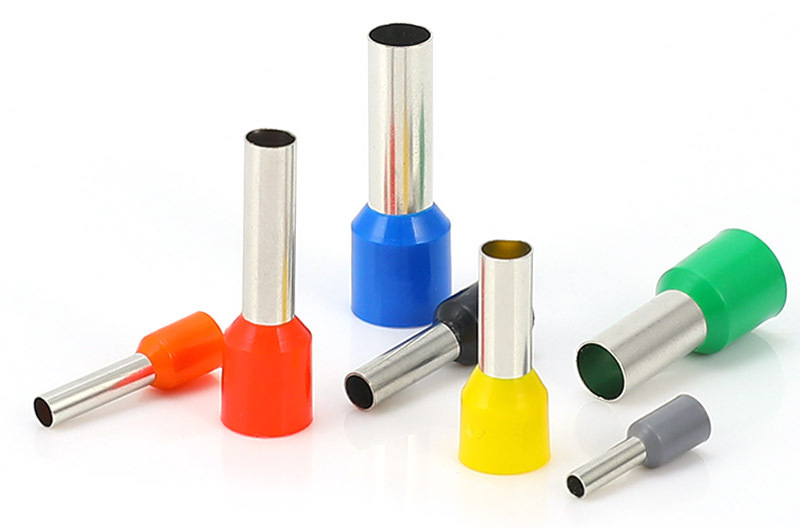

TP-40T Stripping And Pre-insulation FerruleTerminal Crimping Machine applies for tubular terminal from 0.5mm² to 4mm²;
